Trend H/JIG/A Hinge Jig

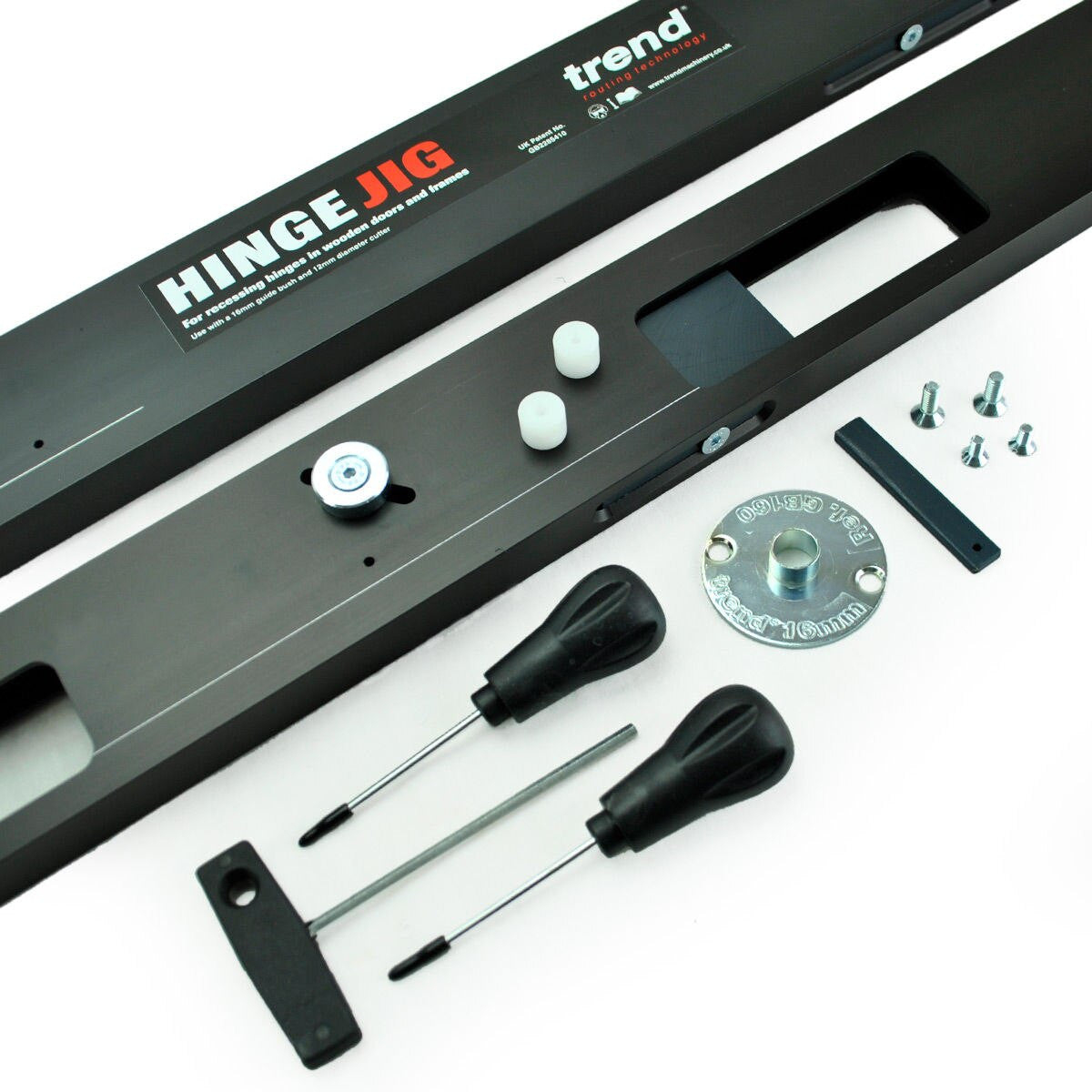

Trend H/JIG/A 2-Piece Hinge Jig complete with apertures, bradawls with spacer, 16mm guide bush, T-Handle hex key, 4mm spacing gauge and fabric storage case

The Hinge Jig H/JIG/A is a 2-piece portable template set designed for recessing hinges in wooden doors & frames. It is easy to use with minimal setting-up time, completing the job both accurately & quickly.

Features:

• Used on-site & in joinery shops to increase productivity with excellent results
• Four apertures for fire door requirements
• No need for marking out in the conventional way
• Quick & simple to set-up as the hinge is used as the pattern
• Clean & accurate recesses are achieved every time
• Suitable for timber based doors & square butt hinges
• Use with a light duty router with 1/4 inch collet
• Long reach router cutter required, 12mm diameter with 70mm overall length
• Angled position slots to prevent creep
• Jig thickness allows it to be used on frames with a maximum 25mm thick fixed stop fitted
• Also suitable for fire doors
• T4EK router requires a UNIBASE

Comes with:

• 4 x Apertures
• 2 x Bradawls with spacer
• 1 x 16mm guide bush
• 1 x T-Handle hex key
• 1 x 4mm spacing gauge
• 1 x Fabric storage case

Specification:

• Hinge sizes possible:
• Length min. 2 5/8" (67mm)
• Length max. 5" (127mm)
• Width min. 3/8" (9.5mm)
• Width max. 1 3/8" (35mm)
• Door sizes possible:
• Height min. 6' 5" (1955mm)
• Height max. 6' 10" (2100mm)
• Thickness min. 5/8" (16mm)
• Weight: 4.345kg
