Stock is not due until the end of June... sorry :-(
order now to secure price for delivery when they arrive

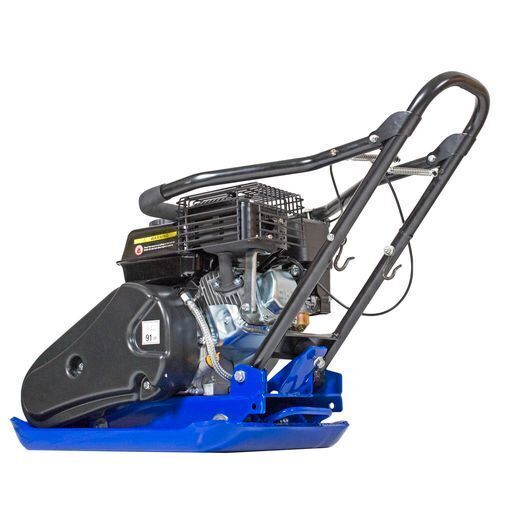

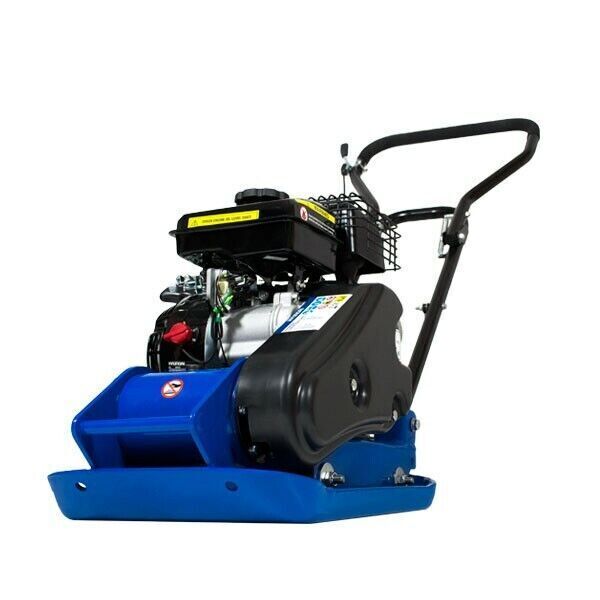

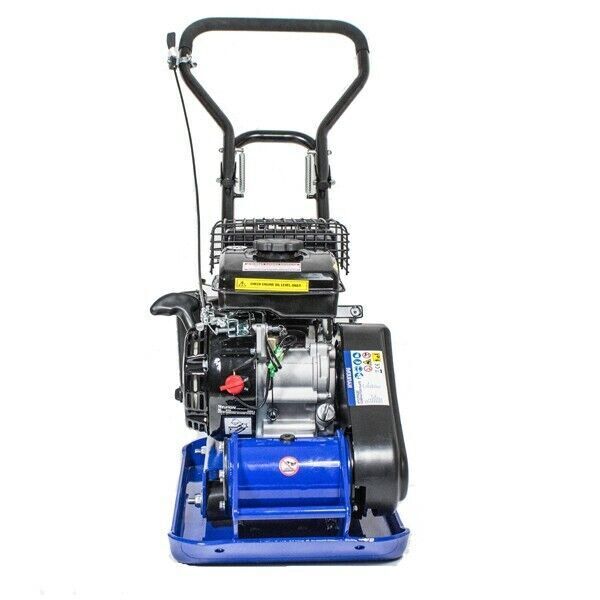

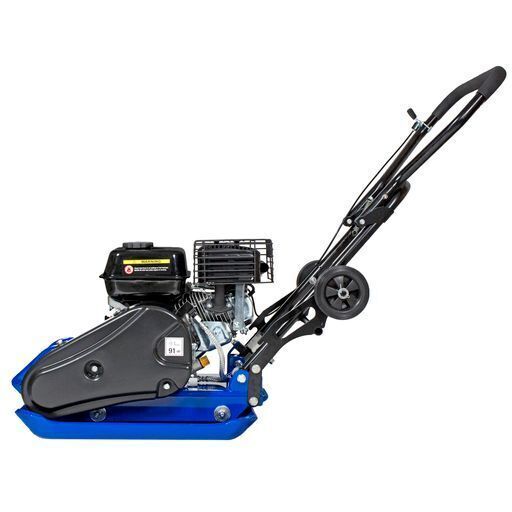

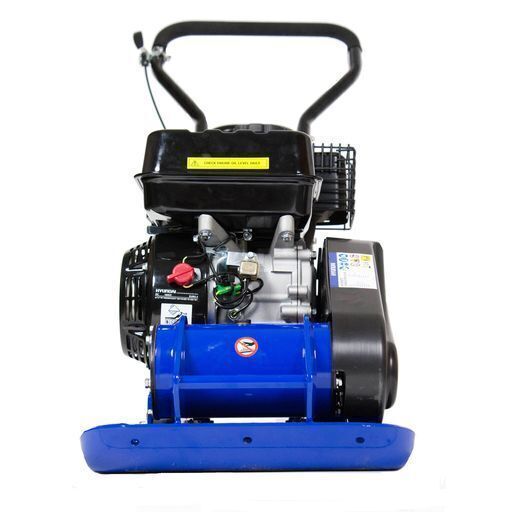

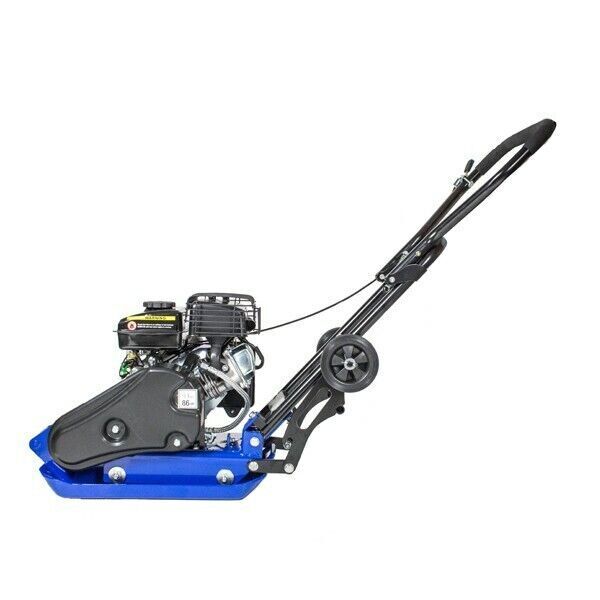

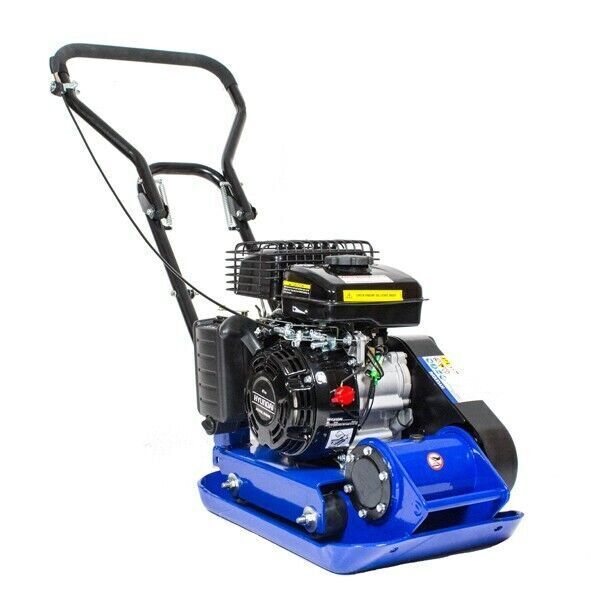

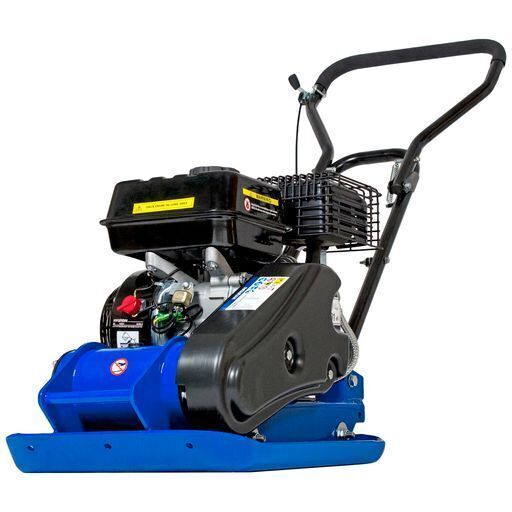

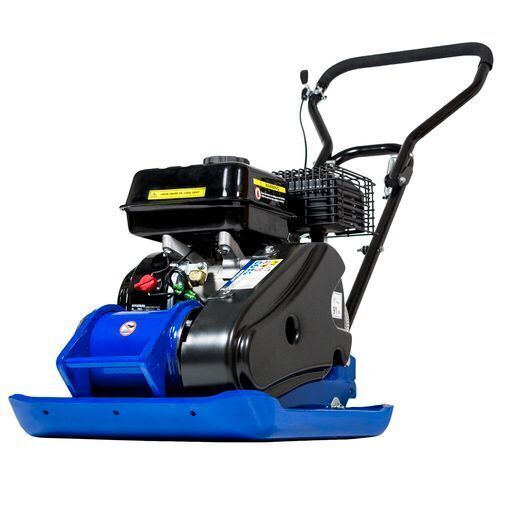

Hyundai HYCP5030 87cc Petrol Plate Compactor / Wacker Plate with Wheel Kit and Paving Pad

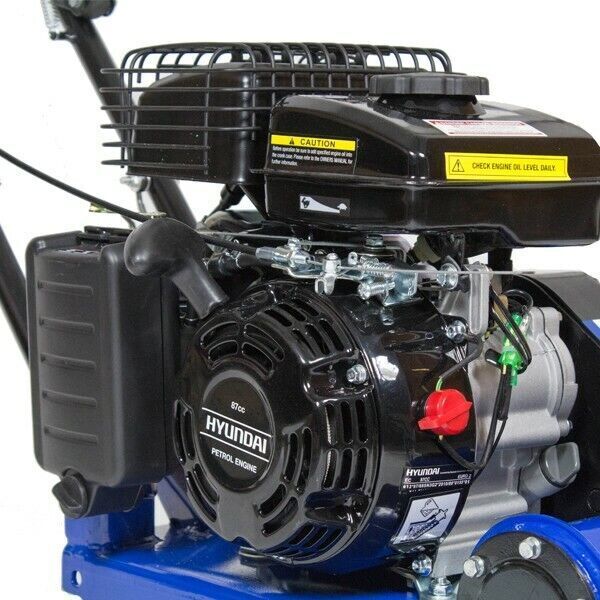

Powered by an 87cc 4-stroke recoil start petrol engine for reliable performance.
Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
Equipped with a large 1.6L fuel tank for long running.
Fitted with a large 495mm x 320mm plate for working effectively on large areas.
Has a travelling speed of 25m/min, with a compaction depth of 200mm.
Wheel Kit and Paving Pad included.
The HYCP5030 is powered by an 87cc 4-stroke recoil start petrol engine, with a large 1.6L fuel tank for long running. It's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
It's fitted with a large plate measuring 495mm x 320mm (L x W) for making quick work of large areas and has a travelling speed of 25m/min, with a compaction depth of 200mm. The V-belt is covered by a guard which protects it from the knocks and bumps of construction work.

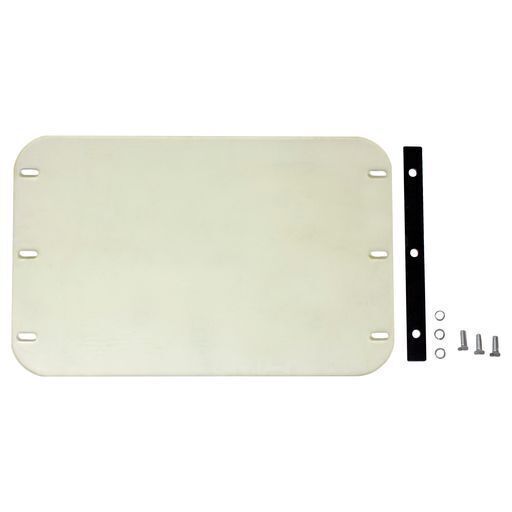

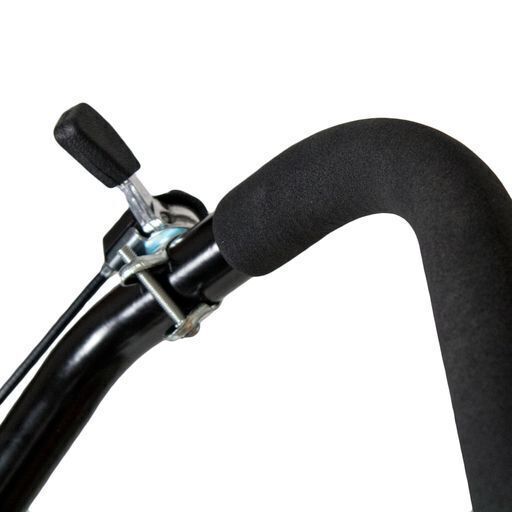

The throttle control is conveniently mounted on the handle, which also has a soft grip cover for increased comfort. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations and the compactor plate comes with a paving pad to protect patios and block paving from any marks or damage during use.

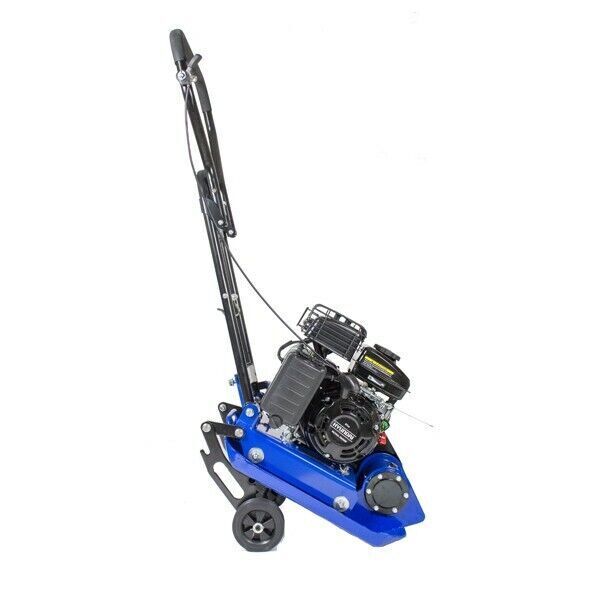

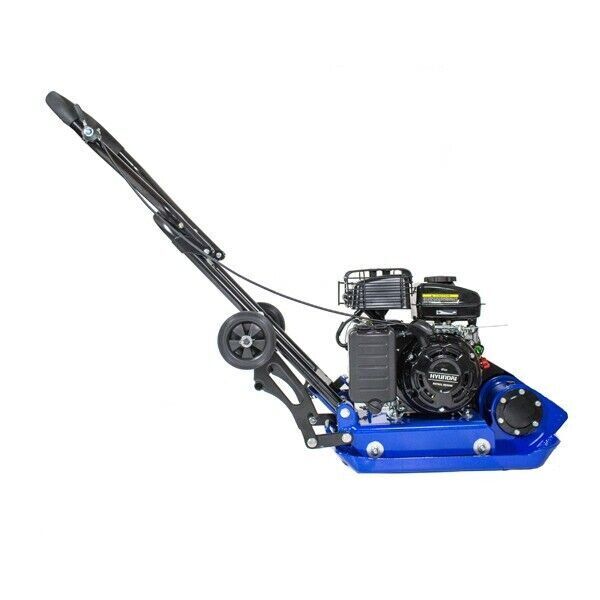

To make storage easy, the handles can be folded down over the main unit.

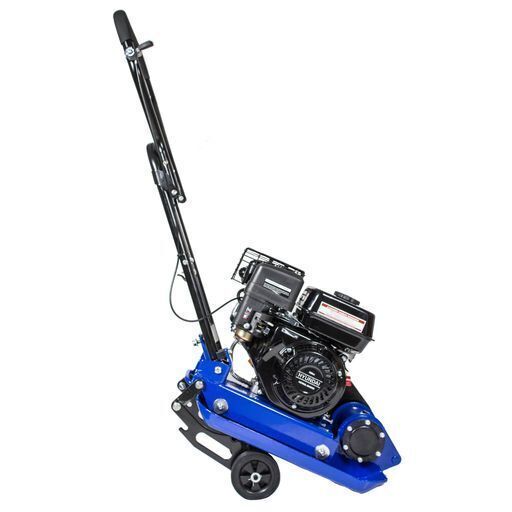

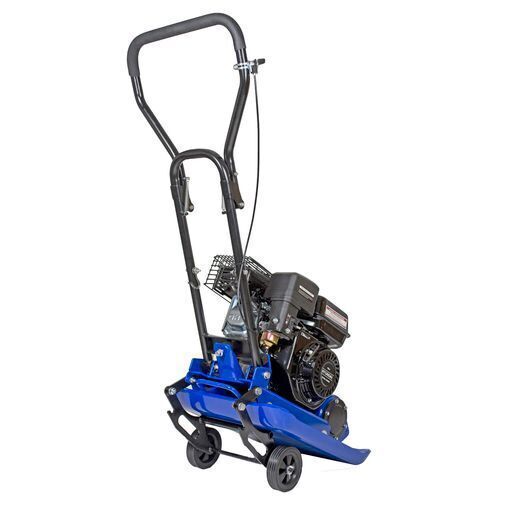

The wheel kit is also available to assist with transporting the compactor from one job to the next.
Gross Weight (kg) 53.00
Engine Type Hyundai 4-stroke
Displacement (cc) 87cc
Starting Method Recoil Pull
Fuel Type Unleaded Petrol
Fuel Tank Capacity (L) 1.60
Noise Rating (dBA) 86.00
Plate Size LxW (mm) 495 x 320
Centrifugal Force (N) 8200.00
Exciter Speed (VPM) 5900.00
Compaction Depth (mm) 200.00
Travel Speed (m/min) 25.00
Exciter Oil Capacity (ml) 60.00
Gross Weight (kg) 53.00
Dimensions L x W x H (mm) 850 x 660 x 1150
Vibration value m/s2 17.50
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Hyundai Petrol Plate Compactor

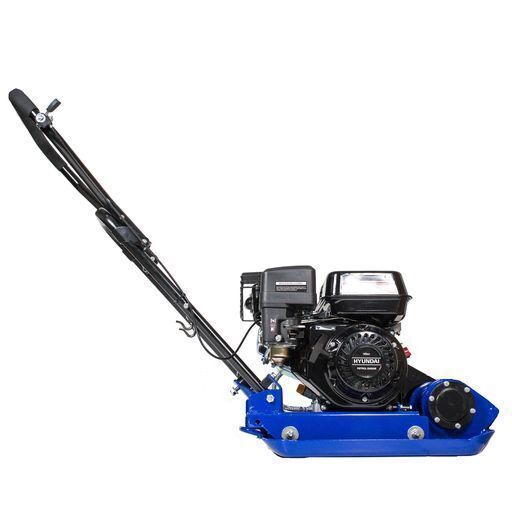

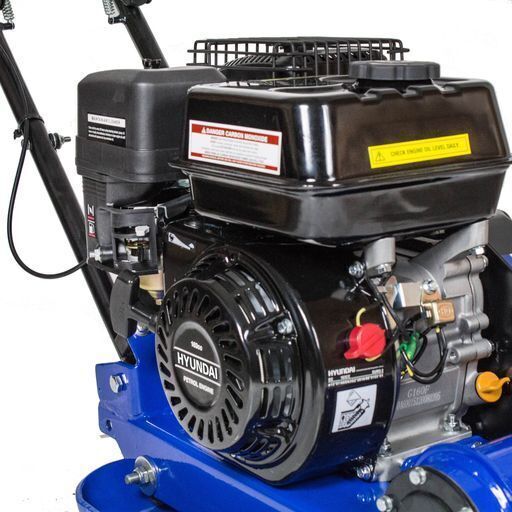

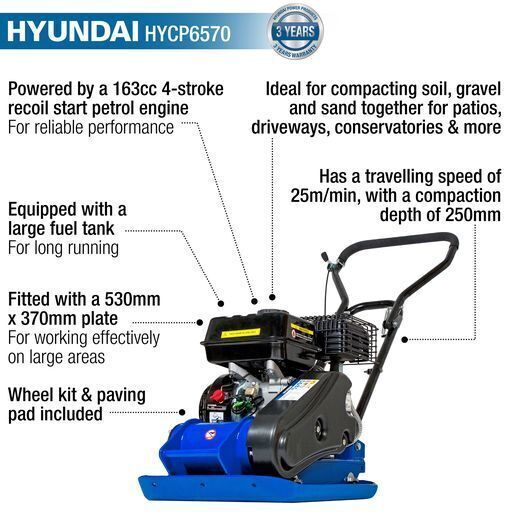

The HYCP6570 is powered by a 163cc 4-stroke recoil start petrol engine, with a large fuel tank for long running. It's ideal for compacting loose soil, gravel and sand together to create a solid and even foundation, providing a cost-effective alternative to hiring for the building, construction and landscaping industries.
Large Compactor Plate
It's fitted with a large plate measuring 530mm x 370mm (L x W) for making quick work of large areas. It has a travelling speed of 25m/min, with a compaction depth of 250mm. For protection from knocks and bumps during construction work, the V-belt is covered by a rugged guard.
Suitable Uses
The handle features a soft grip cover for increased comfort, and for convenient storage the handle can also be folded down over the main unit. It's designed for building patios, driveways, block paving, garage extensions and conservatory foundations. A wheel kit is included for increased maneuverability when transporting the compactor plate from one job to the next.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Hyundai Compactor/Wacker

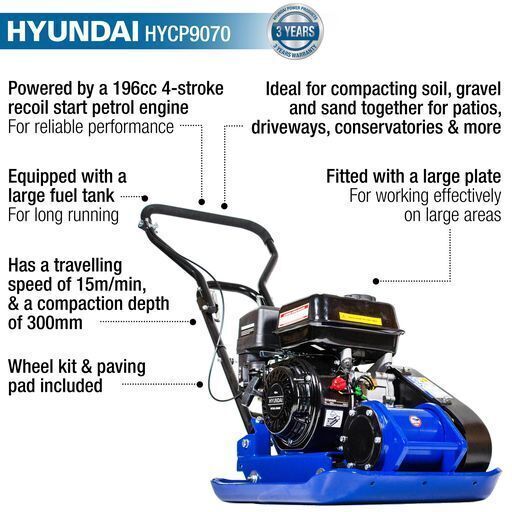

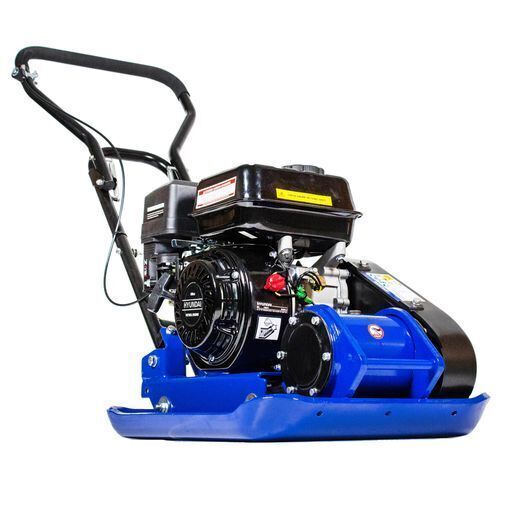

The HYCP9070 is the flagship compactor plate / wacker in the Hyundai Power Equipment range, powered by a 196cc 4-stroke petrol engine and equipped with an extra-large plate measuring 540mm x 420mm (L x W).
Suitable Uses
With a travelling speed of 15m/min and a compaction depth of 300mm, this compactor plate is suited for jobs both large and small, such as building driveways, patios, decking, block paving and more. Providing a cost-effective alternative to hiring. The HYCP9070 is more than capable of compacting soil, sand and gravel into a level and solid foundation.
The included paving pad will protect patios and block paving from being marked during use.
Easy To Use
The wheel kit and guide handle allows for easy manoeuvrability and incorporates a soft grip foam to increase comfort for the user. The handle will also fold down for ease of transport and storage.
The controls to run the compactor plate are all within easy reach of the guide handle making operation and control simple.
Built To Last
The design of the HYCP9070 is simple and efficient, but it's built to last for years of reliable service. The V-belt is housed by a hard cover to protect it from the knocks and bumps of construction work, and the handle is covered by a soft grip for increased comfort during operation.
In The Box:
Hyundai HYCP9070 Compactor Plate
Wheel Kit
Paving Pad
Tool Kit
User Manual
