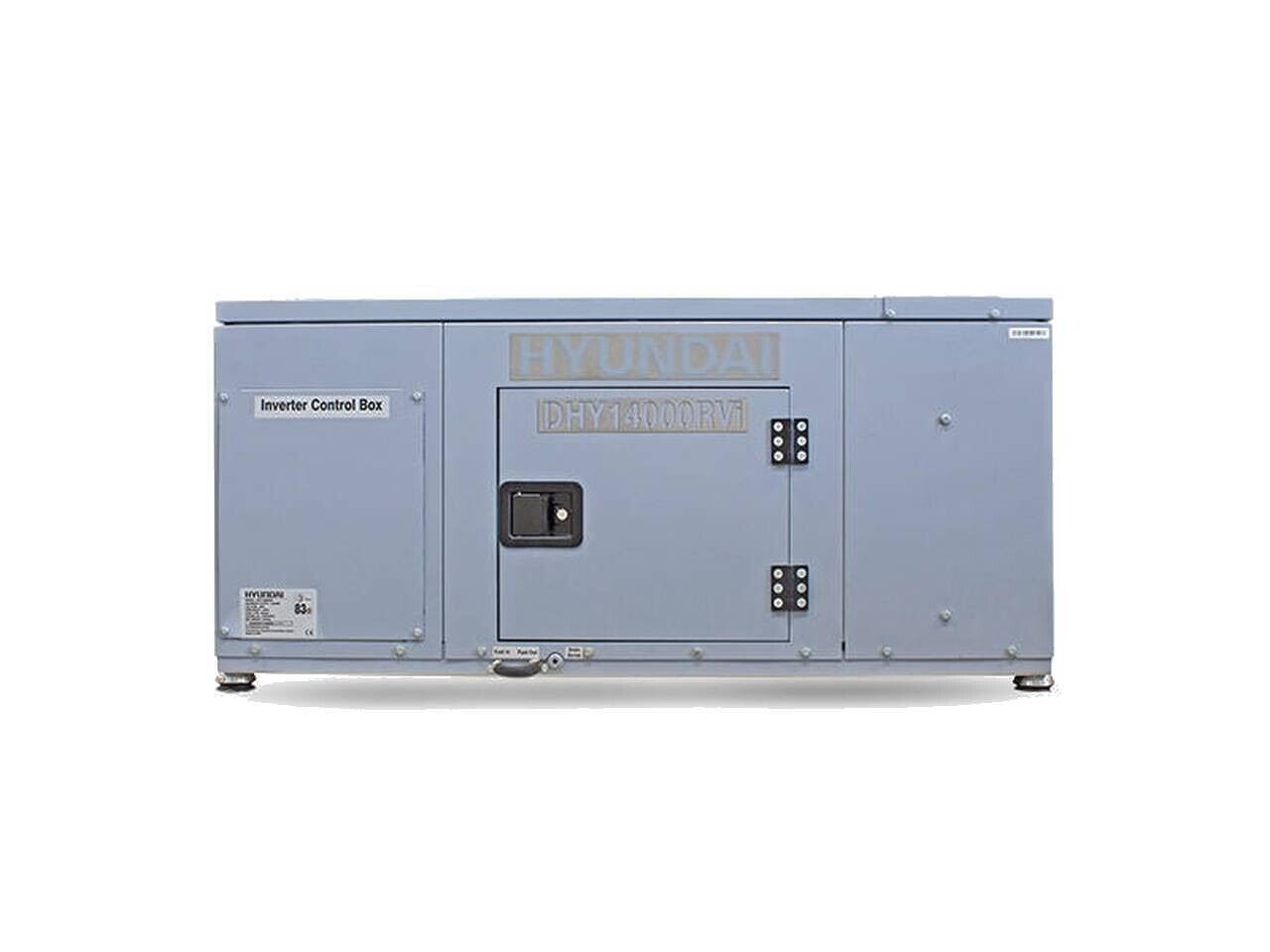

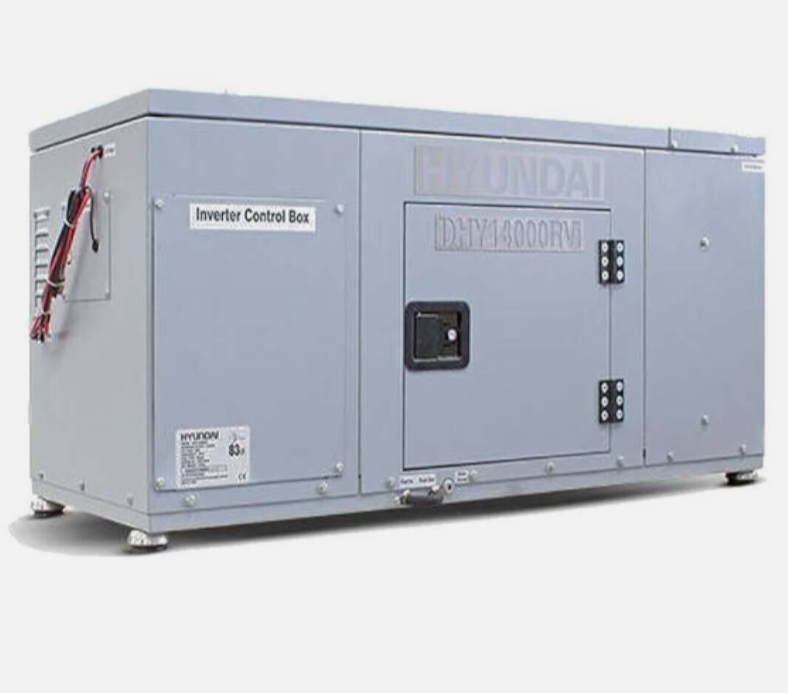

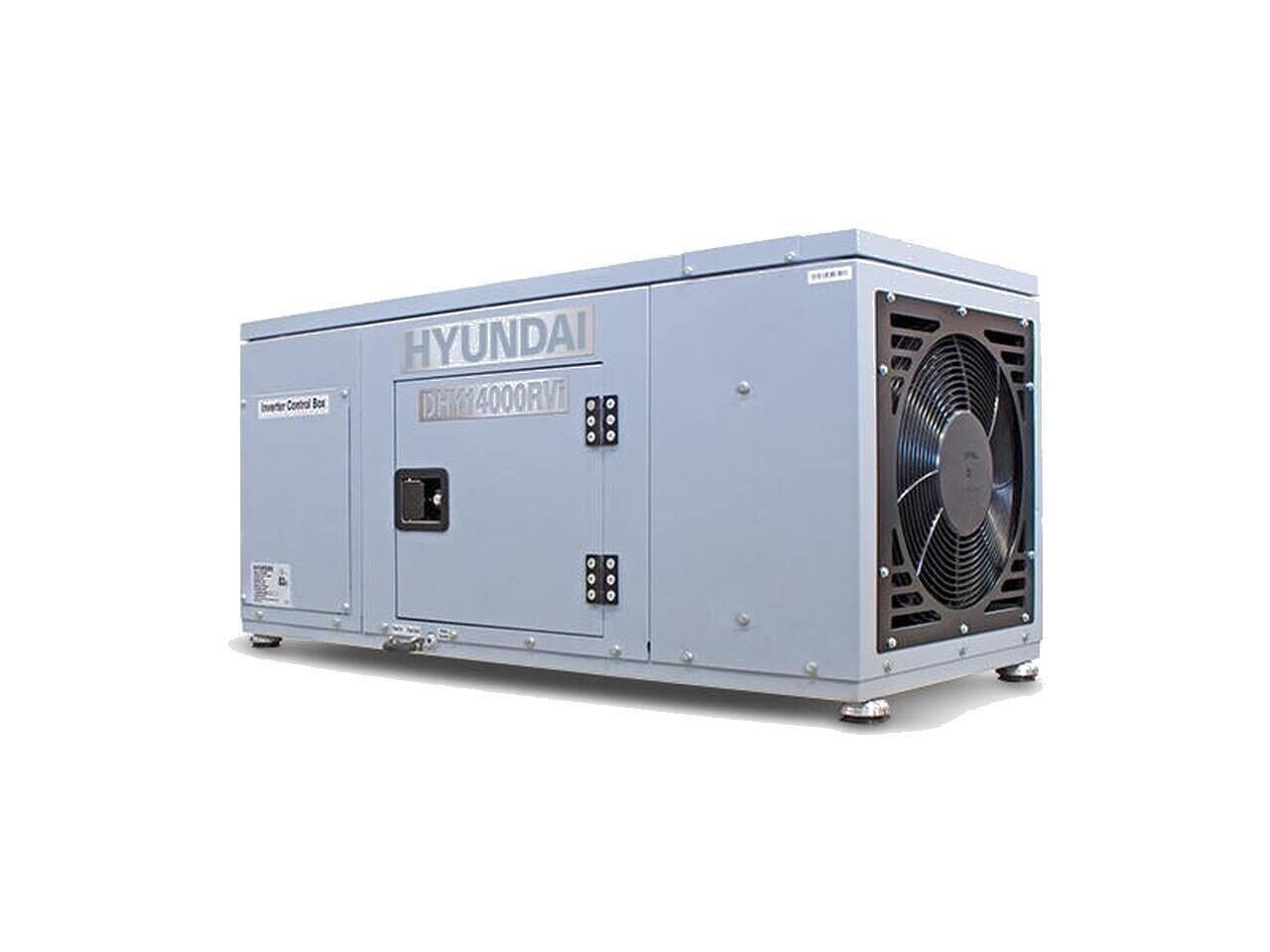

Hyundai 14kW Vehicle RV Diesel Generator DHY14000RVi

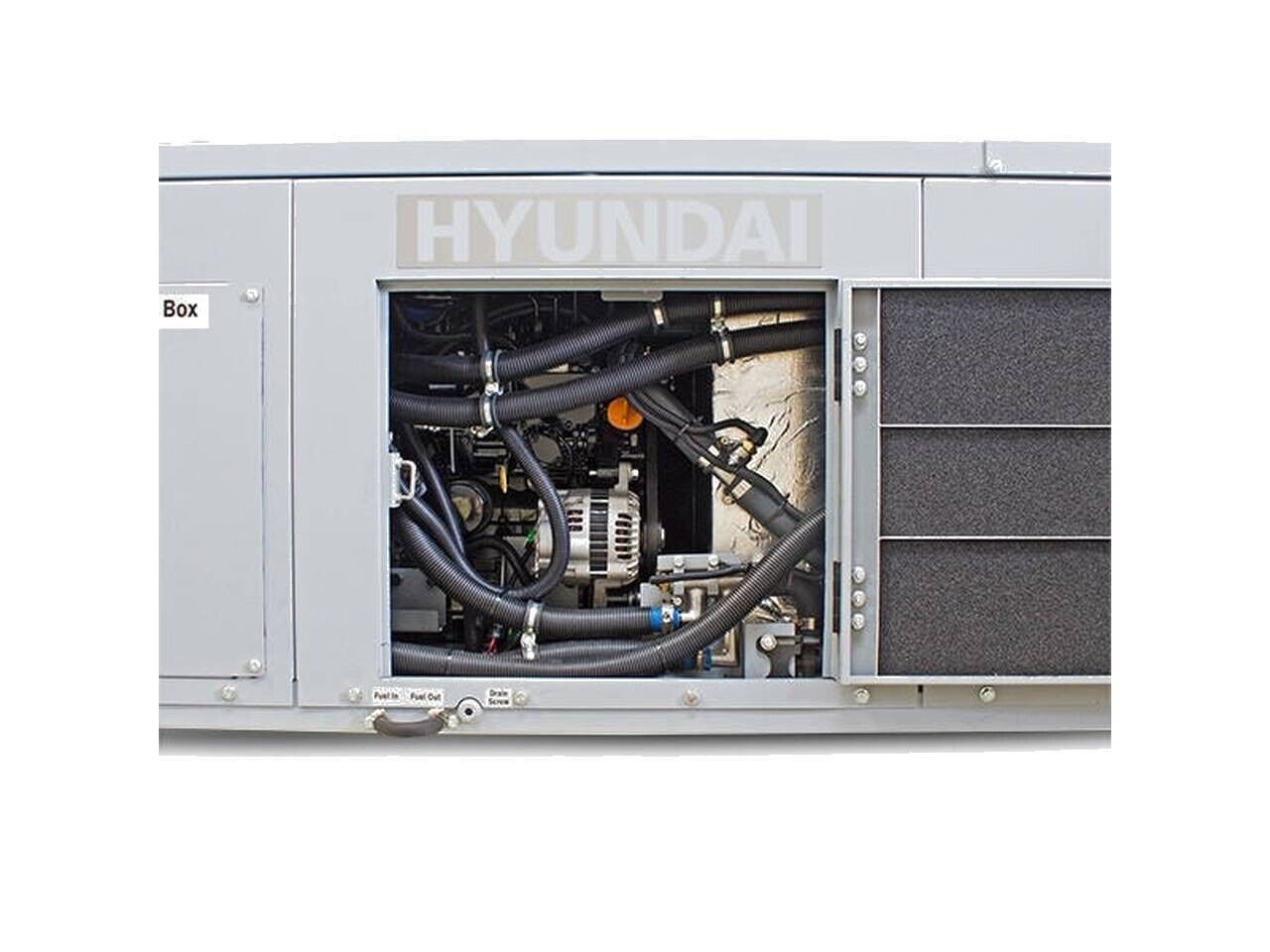

The Hyundai DHY14000RVi 14kW Vehicle RV Diesel Generator is a portable, lightweight generator perfect for mounting on specialist vehicles including motorhomes, emergency vehicles, mobile billboards and race trucks. This generator can be mounted permanently onto said vehicles, delivering 14Kw of continuous power on the move. Straightforward and user-friendly, the DHY14000RVi is powered by a water cooled 4-stroke OHV diesel engine. This engine is super quiet, low vibration and highly economical with 291 g/kw.h at 75% load. The DHY14000RVI delivers a range between 10kVA ~ 30kVA, with variable speed between 1600rpm - 2400rpm. The generator is controlled via a digital control panel that can be mounted inside the vehicle. This panel connects to the generator via an 8m USB cable, and is used to turn the generator on and off, as well as monitor oil levels, frequency, power usage, fuel levels and more. Ideal for specialised vehicles requiring power on the move.

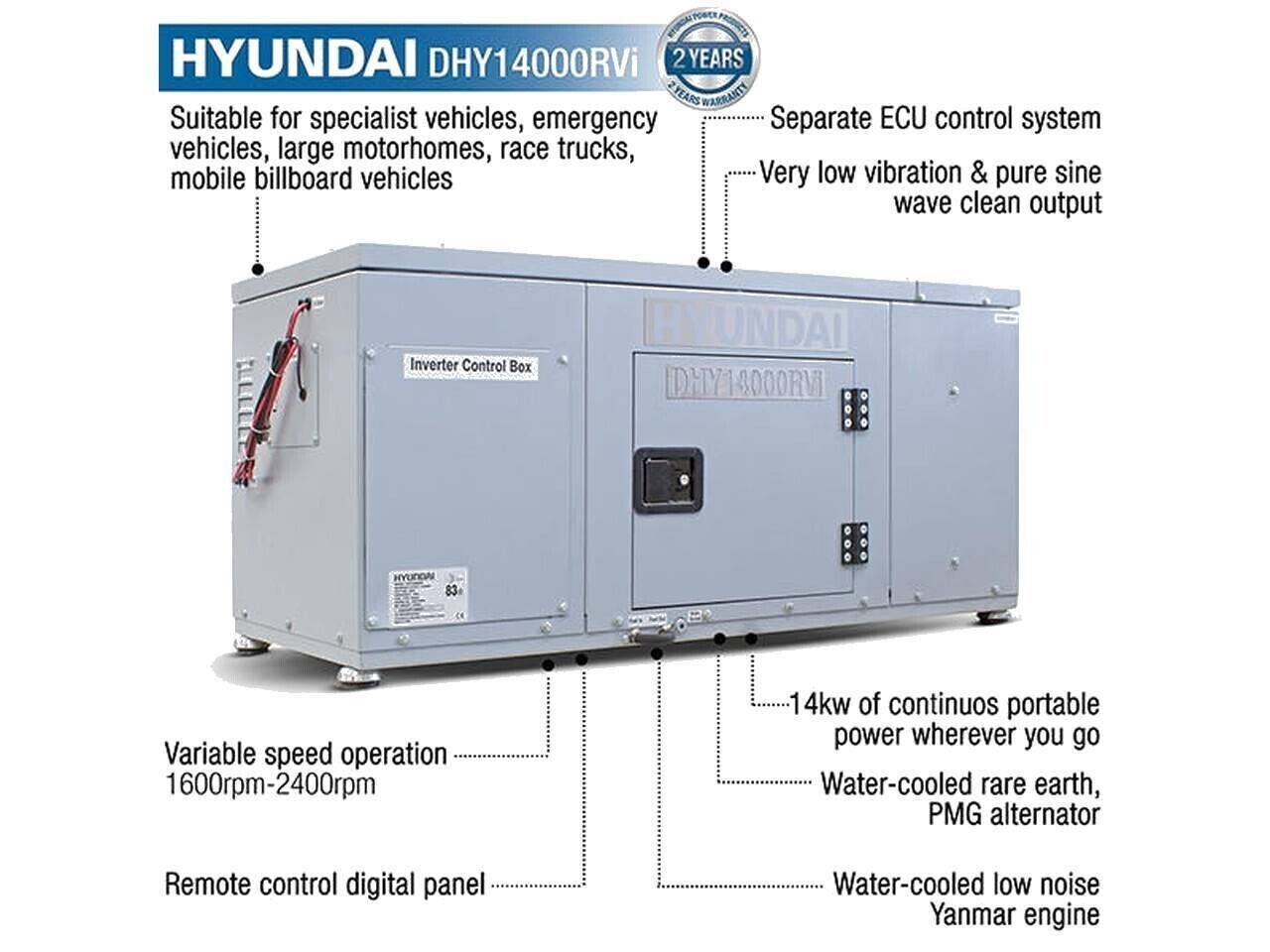

Features and Benefits:
Delivers 14Kw of continuous power on the move.
Quiet, low-vibration engine with excellent fuel economy
Digital control panel to monitor essential statistics including oil levels, fuel use and frequency
Technical Specification:
Dimensions (H x W x L) (mm) - 1520X604X750
Dry Weight - kg345
Engine Model - Yanmar 3TNV76 Diesel Engine Model
Engine Type – Vertical
Frequency (Hz) – 50
Fuel Tank Capacity (L) - Dependant On Vehicle Fuel Tank
Maximum Power (kW) – 14
Oil Capacity (ml) - 1.6-3.8
Rated Power (kW) – 12
Rated Speed (RPM) (rpm) - 1600-2400
Start Method - 12v Electric Start
Voltage (VAC) - 110 / 220 / 240 / 380
Recommended Oil Type - 10w40 / 15w40
Supplied With:
1 x Hyundai DHY14000RVi 14kW Vehicle RV Diesel Generator
